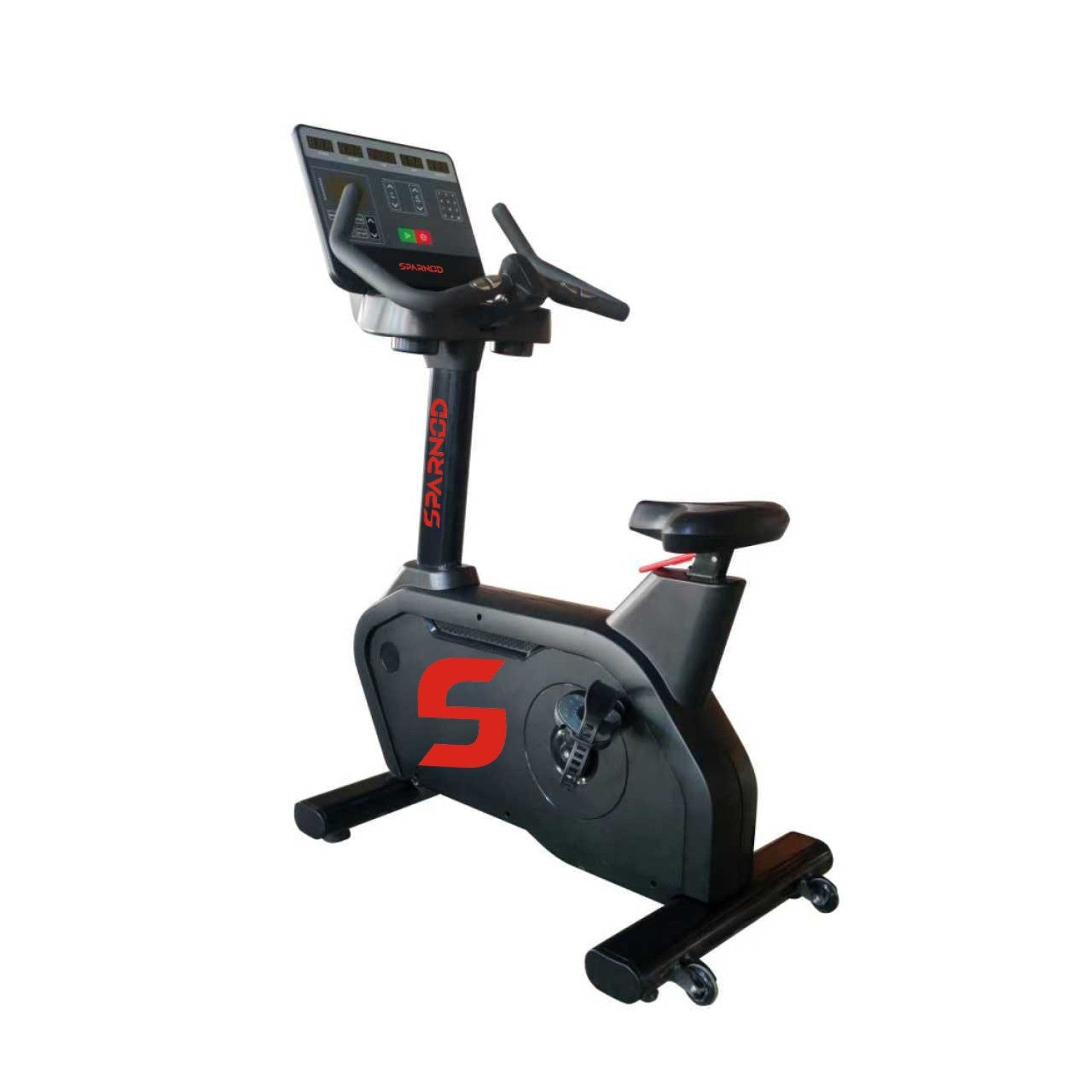

Upright Exercise Bike SUB-520 Commercial Self-Powered 150kg Capacity Heart Rate Console Phone Holder Transport Wheels Black

The SUB-520 uses a self-powered generation system, meaning the act of pedaling itself produces the small amount of electrical current needed to run the console display. A small generator or dynamo is integrated into the drivetrain; as the flywheel spins from your pedaling motion, it generates electricity that powers the LCD console in real time. This means the moment you stop pedaling, the console powers down, and the moment you resume, it activates again automatically. There is no need for batteries, a power cable, or a wall socket at any point. This makes the SUB-520 extremely practical for UAE commercial spaces such as hotel gyms, corporate wellness rooms, and private studios where managing power outlets and cable routing across a gym floor is impractical or aesthetically undesirable. The self-generation system does not affect the resistance mechanism or pedaling feel in any way; resistance is controlled independently through the console's resistance level setting and adjusted using the dedicated shortcut key. The system is reliable, low-maintenance, and contributes to zero electricity running costs throughout the bike's operational life.

The 150 kg maximum user weight makes the SUB-520 one of the highest-rated upright exercise bikes in its class available in the UAE, suitable for a much broader range of users than the standard 100 to 120 kg capacity found on most residential bikes. In practical terms, the 150 kg rating accounts for static body weight only. During active cycling, particularly at high resistance levels or during standing pedaling, the dynamic load on the frame, pedals, and seat post is higher than the user's resting weight. UAE Stall recommends that users remain at least 15 to 20 kg below the maximum rating during intense sessions to ensure the structural integrity of the frame and drivetrain is maintained long term. The SUB-520 is best suited for commercial gym environments handling diverse user populations, heavier users seeking a durable and stable cycling platform, fitness facilities in UAE hotels and corporate offices, and home users who want commercial-grade durability without the bulk of a full commercial machine. The 62 kg net weight of the bike contributes to its rock-solid stability, preventing rocking or tipping even when users shift their weight during high-resistance intervals.

The SUB-520 arrives partially assembled in a package measuring 1100 x 660 x 870 mm with a gross weight of 83 kg. The assembly process typically involves attaching the handlebar post to the main frame, connecting the seat post and seat, installing the pedals, and attaching any console or holder components. All necessary hardware including bolts, washers, and an Allen key or spanner are included in the package. The assembly process for a single person typically takes 30 to 45 minutes following the included instruction manual step by step. For commercial installations where multiple bikes are being set up simultaneously, 2 people can significantly speed up the process. When installing the pedals, note that the left pedal has a reverse thread and must be turned counterclockwise to tighten, while the right pedal tightens clockwise. Failure to observe this will result in the left pedal loosening during use. After assembly, check that all bolts are fully tightened, the seat and handlebar adjust smoothly and lock securely at your preferred height, and the bike sits level on the floor without rocking. If the floor is uneven, use rubber leveling feet or a fitness mat to stabilise the base before first use.

The handheld heart rate sensor on the SUB-520 is built into the handlebars and reads your pulse through electrical conductivity when both hands make firm contact with the metal sensor pads simultaneously. The reading typically takes 5 to 10 seconds to stabilise and display on the console after contact is established. For best accuracy, ensure your hands are not overly sweaty when gripping the sensors, as excessive moisture can interfere with the electrical signal. The sensor provides a useful real-time estimate of your heart rate for general cardio training and is accurate enough for zone-based training where you are targeting a percentage of your maximum heart rate for fat burn or cardiovascular conditioning. For users who require medical-grade heart rate precision, a dedicated chest strap monitor is more accurate than a contact sensor. In a typical UAE home gym or commercial fitness context, the handheld sensor is fully adequate for monitoring exertion levels, avoiding overtraining, and tracking recovery between intervals. To use it effectively during a session, check your heart rate at the 10-minute mark, midpoint, and final 5 minutes of each workout to ensure you are training within your target zone throughout the session.

For a commercial exercise bike used by multiple users daily, a consistent maintenance routine is essential to extend the machine's operational life and maintain user safety. After every session or at the end of each gym day, wipe down the frame, handlebars, seat, and phone holder with a disinfectant-safe dry or slightly damp cloth to remove sweat, which is mildly corrosive to metal components over time. Weekly, inspect the pedals by applying lateral force to each pedal to check for any looseness or wobble; tighten as needed using the correct thread direction (right pedal clockwise, left pedal counterclockwise). Monthly, check all major bolts at the handlebar stem, seat post clamp, and frame joints and re-tighten to the specifications in the assembly manual. Inspect the seat and handlebar adjustment pins or levers for signs of wear or difficulty engaging; apply a small amount of dry lubricant to the adjustment channels if stiffness develops. Every 3 to 6 months, inspect the flywheel and resistance mechanism for unusual sounds or irregular resistance response; if resistance feels inconsistent or the flywheel makes grinding noises, contact UAE Stall for warranty service. Keep transport wheels clean and free of debris so the bike rolls smoothly when repositioning. Store the bike in a climate-controlled indoor environment and avoid exposure to direct sunlight or humidity, which can degrade the console electronics and frame finish over time.
